NOISELESS  HUMLESS-P90



The hum-free HUMLESS-P90 pickups have the following main features :
- The sound of the classic P90 pickups while maintaining no-hum.
- 4-wire lead.
- Choice of three connection configurations - permanent or switchable.
- Installation in the "dog ear" or "soapbar" cover.

UNIQUE FEATURES OF HUMLESS-P90 IN RELATION TO PICKUPS FROM OTHER MANUFACTURERS

The HUMLESS-P90 pickups can be connected in three ways with different sonic characteristics and resistance to hum:
hum-free  Series connection:  The deep, warm sound.
hum-free Parallel connection:  A warm sound with more harmonics (sound between P90 and Strat).
"humming" One Coil:  Classic "vintage" P90 sound with "classic" hum.

The pickups are made for 50 and 52mm string spacing.
PCBs with hole metallization and solder mask were used to build the pickups.
The magnetic system of the pickups is built on the ALNICO 5 magnets. On request, it is possible to use other ALNICO.

PRICE:  €110


P90


SPECIFICATIONS
P90 P90-52 P90-50
TYPE ELECTROMAGNETIC PASSIVE
DEDICATED POSITION BRIDGE NECK
MAGNETIC SYSTEM 6 magnets ALNICO 5.  Others upon agreement
RESISTANCE (serial) 23 kOhm 20 kOhm
INDUCTANCE (serial) 4,9 H 4,1 H
RESISTANCE TO MICROPHONE FEEDBACK YES - waxing coils, tape
COVER COLOUR BLACK. Other - upon agreement
Data may vary slightly. This is due to the process of design and features improving.

DIMENSIONS
P90 - DOG EAR

P90 - SOAPBAR

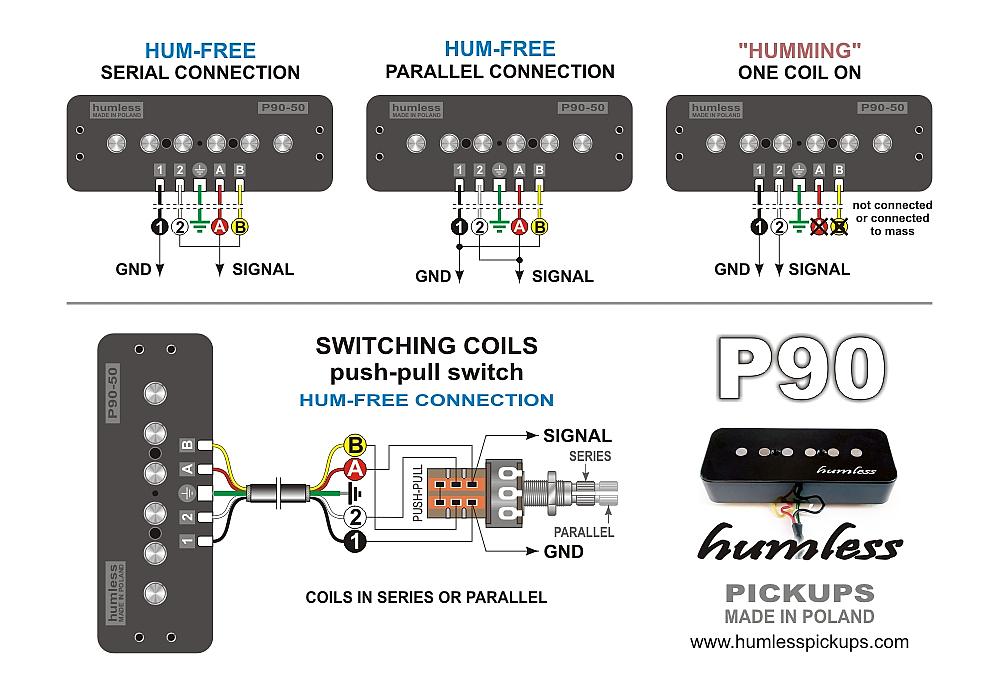

CONNECTIONS
