NOISELESS STRATOCASTER PICKUPS  HUMLESS-S




HUMLESS-S (STRATOCASTER PICKUPS) are 3rd Generation hum-free pickups featuring:
- maximum immunity and resistance to other electromagnetic interference,
- warm, wide, clear sound corresponding to the classic sound of single-coil pickups,
- original, innovative design and durability used in building materials.



HUMLESS - SB


HUMLESS-S are hum-free STRAT type pickups in an exclusive design based on double-sided PCBs with hole metallization and soldermask.
The pickups are made for 50 and 52 mm string spacing.
The magnetic system of the pickups are built on the ALNICO 5 magnets. On request, it is possible to use other ALNICO magnets.


PRICE:  $ 85

SPECIFICATION
SB "PRECISION" SB52 SB50
TYPE ELECTROMAGNETIC PASSIVE
POSITION BRIDGE MIDDLE, NECK
MAGNETIC SYSTEM 6 magnets ALNICO 5.  Others upon agreement
RESISTANCE 16,5  kOhm 14,9 kOhm
INDUCTANCE 2,9 H 2,5 H
RESISTANCE TO MICROPHONE FEEDBACK YES - waxing coils, type
COVER BLACK or WHITE.  Others upon agreement
Data may vary slightly. This is due to the process of design and features improving.

DIMENSIONS
COVER WITH HOLES

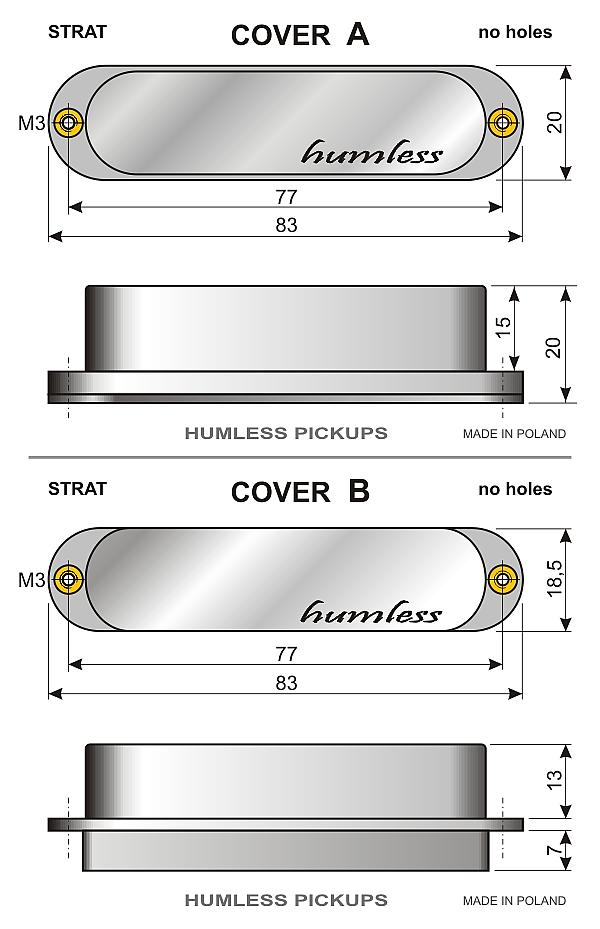

COVER WITHOUT HOLES



CONNECTIONS

Do not solder anywhere other than the cable connections.

         SAMPLE
   BRIDGE / CLEAN
   BRIDGE / CLEAN
Guitar playing:  K. Misiak
   MIDDLE / CLEAN
   NECK / CLEAN
   BRIDGE / DISTORTION
   NECK / DISTORTION





HUMLESS S-SPARK


HUMLESS S-SPARK are exclusive pickups (split coil) built on the basis of double-sided PCBs with hole metallization and soldermask. SMT surface assembly technology.
They are characterized by a crystalline ("glass"), clear, very dynamic, broadband, warm sound, fully corresponding to the sound of classic vintage Fender Stratocaster single coil pickups. They have a quick attack. They are maximally resistant to hum and electromagnetic interference.
NOTE: The split coil design is the only one that provides dynamic, crystal clear and fully Stratocaster sound of classic single-coil pickups. However, in the Middle and Neck positions of the pickup, when pulling the G string towards the D string, there may be a slight attenuation of the signal when the pulled string is in the middle of the G and D string magnets of the attached pickup. For the Bridge position, this phenomenon does not occur.
They are made for 50 and 52 mm outermost string spacing.
The magnetic system of the pickups is built on the ALNICO 5 magnets. On request, it is possible to use other ALNICO magnets.

PRICE:  $ 85

SPECIFICATION
S-SPARK S-S52 S-S50
TYPE ELECTROMAGNETIC PASSIVE
POSITION BRIDGE MIDDLE, NECK
MAGNETIC SYSTEM 6 magnets ALNICO 5.  Others upon agreement
RESISTANCE 9,4 kOhm 8,4  kOhm
INDUCTANCE 2,6 H 2,2 H
RESISTANCE TO MICROPHONE FEEDBACK YES - waxing coils, tape
COVER BLACK or WHITE. Others upon agreement
Data may vary slightly. This is due to the process of design and features improving.

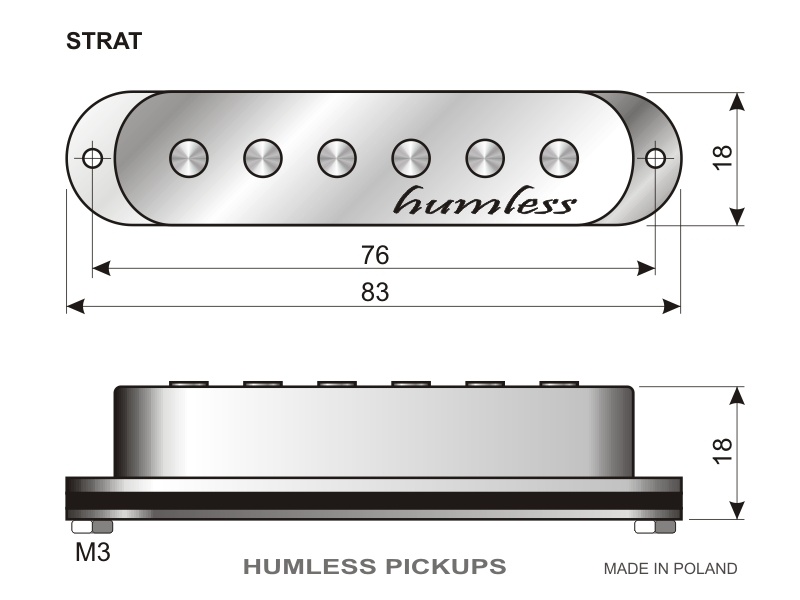

DIMENSIONS
COVER WITH HOLES

COVER WITHOUT HOLES


CONNECTIONS

Do not solder anywhere other than the cable connections.

HUMLESS S-FLY


Hum-free HUMLESS S-FLY pickups are characterized by increased signal and precise articulation
They are predisposed in particular to overdriven sounds (including heavy ones), but also to clean-type sounds.
They are made for 50 and 52 mm outermost string spacing
The magnetic system of the pickups is built on the ALNICO 5 magnets. On request, it is possible to use other ALNICO magnets.

PRICE:  $ 80

SPECIFICATION
S-FLY S-F52 S-F50
TYPE ELECTROMAGNETIC PASSIVE
POSITION BRIDGE MIDDLE, NECK
MAGNETIC SYSTEM 6 magnets ALNICO 5.  Others upon agreement
RESISTANCE 18 kOhm 16 kOhm
INDUCTANCE 3,4 H 3,2 H
RESISTANCE TO MICROPHONE FEEDBACK YES - waxing coils, tape
COVER BLACK or WHITE.  Others upon agreement

Data may vary slightly. This is due to the process of design and features improving.

DIMENSIONS


CONNECTIONS


NOTE
For HUMLESS S-FLY pickups it is recommended to use potentiometers of 500 kOhm in the guitar.

HUMLESS  SH

"SINGLE COIL" TYPE PICKUP IN HUMBUCKER COVER


Humless SH are noiseless, "single coil" type with sound features of STRAT pickups in a humbucker cover.
Built on the basis of double -sided PCBs with metalization of holes and soldermasc. SMT surface assembly technology.
The pickups are made for 50 and 52 mm string spacing.
The magnetic system of the pickups are built on the ALNICO 5 magnets. On request, it is possible to use other ALNICO magnets.

PRICE:  $ 85

SPECIFICATION
SH SH52 SH50
TYPE ELECTROMAGNETIC PASSSIVE
POSITION BRIDGE MIDDLE, NECK
MAGNETIC SYSTEM 6 magnets ALNICO 5.  Other upon agreement
RESISNATCE 9 kOhm 8 kOhm
INDUCTANCE 2,5 H 2 H
RESISTANCE TO MICROPHONE FEEDBACK YES - waxing coils, tape
COVER METAL: CHROME OR GOLD
PLASTIC: BLACK
Data may vary slightly. This is due to the process of design and features improving.

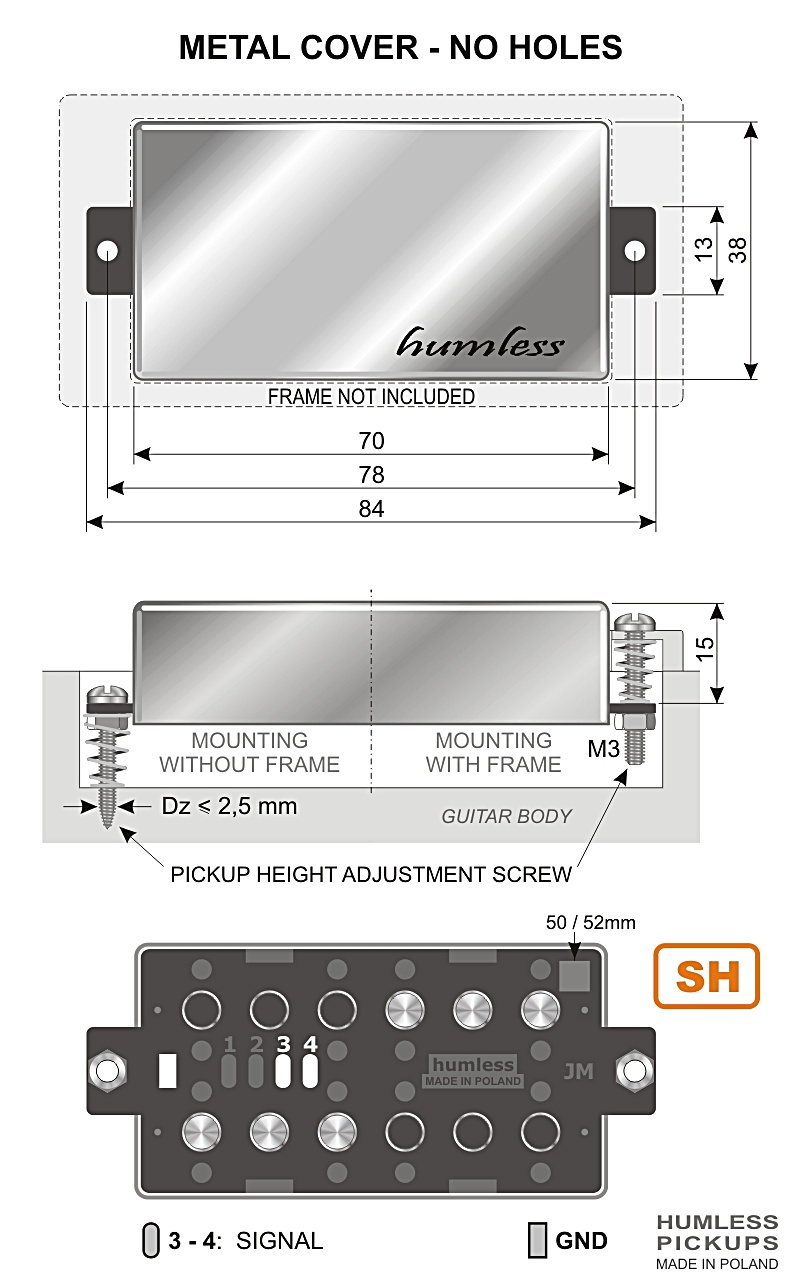

METAL COVER CHROME OR GOLD



PLASTIC COVER




CONNECTIONS
