NOISELESS HUMBUCKERS - HUMLESS

HUM-FREE ALSO AFTER THE COILS DISCONNECTED !


The HUMLESS humbuckers have a unique worldwide design and principle of operation thus having the following features:
- they are noiseless when working as humbuckers, as well as when the coil is disconnected (unique feature)
- when working as humbucker the Humless pickups have a humbucker classic, "fleshy" sound,
- when the coils are disconnected, the sound corresponds to the classic Stratocaster single-coil sound,
- original, innovative design and durability used in building materials.
The HUMLESS-H pickups are made for the 50 and 52 mm string spacing.
They are dedicated to all electric guitars including Jazz Guitars (Archtop, Hollowbody, Semi-hollowbody).

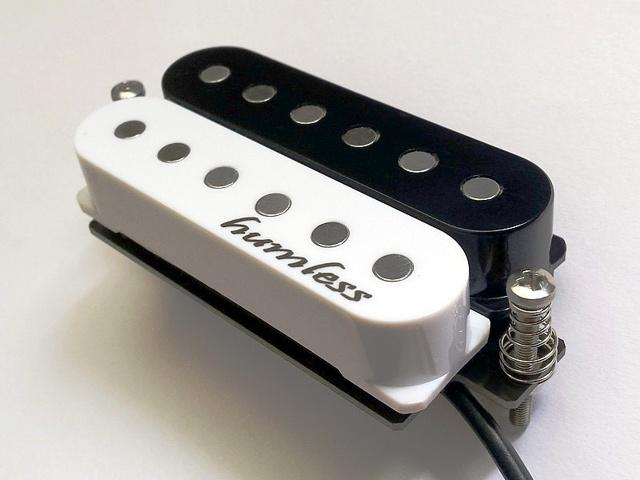

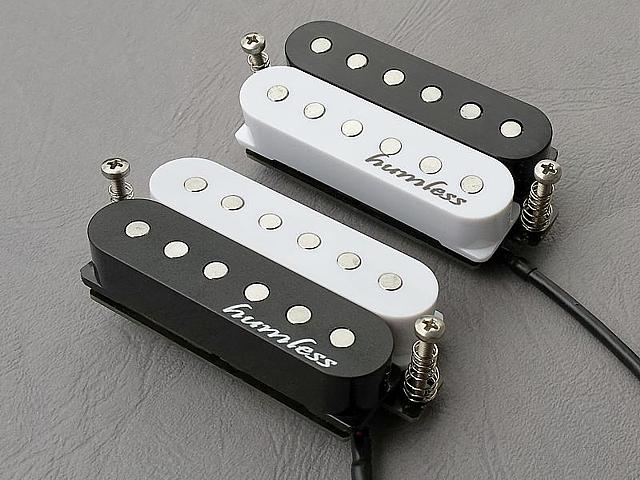

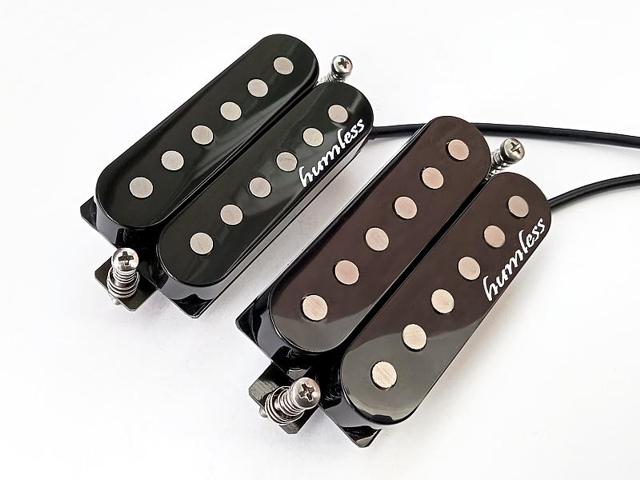

HUMLESS-H


HUM-FREE ALSO AFTER THE COILS DISCONNECTED !

HUMLESS-H humbuckers have a world-unique arrangement of coils and their configurations and connections, which ensures maximum hum-free operation both in the humbucker mode, as well as after disconnecting the coils and with their parallel connection.
This gives the possibility to obtain a variety of sounds: from the "fleshy" sound of the humbucker to the sound corresponding to the sound of classic single-coil pickups.
They are characterized by a strong (stronger than the classic P.A.F.), warm and clear signal with a wide and even band.

Due to the unique characteristics of noiselessness and the possibility of configuring connections - and thus obtaining different sounds - they are predisposed for a wide range of applications in various musical genres.
They are dedicated to all electric guitars, including jazz guitars (Archtop, Hollowbody, Semi-hollowbody).

The pickups are made for 50 and 52mm string spacing
PCBs with hole metallization and solder mask were used to build the pickups.
The magnetic system of the transducers is built on the ALNICO 5 magnets. On request, it is possible to use other ALNICO magnets or NEODYMIUM magnets.


PRICE:  110 USD/pc.
Discound : 5% for 2 pcs., 7,5% for 3 pcs.

SPECIFICATION
MODEL H52-M/P/2P H50-M/P/2P
TYPE ELEKTROMAGNETIC PASSIVE
POSITION BRIDGE NECK
MAGNETIC SYSTEM 12 magnets ALNICO 5 (standard). Others upon agreement
RESISTANCE 15,5 kOhm 14,7 kOhm
INDUCTANCE 3,5 H 3,1 H
RESISTANCE TO MICROPHONE FEEDBACK YES - waxing coils
MAS 90 - 115 g 90 - 115 g
ASSEMBLY CONDITIONS In typical sockets and holes

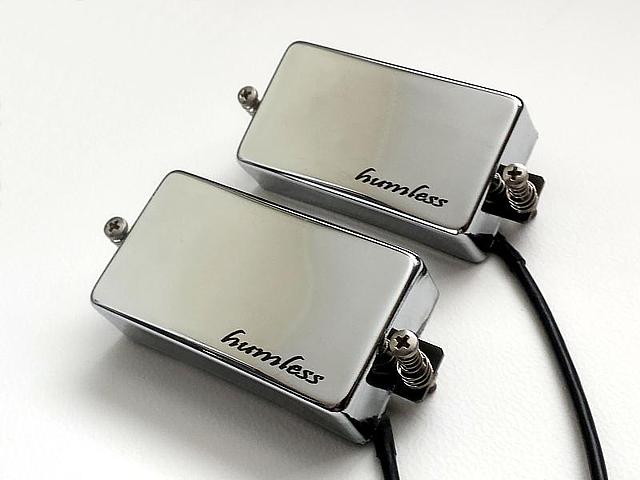

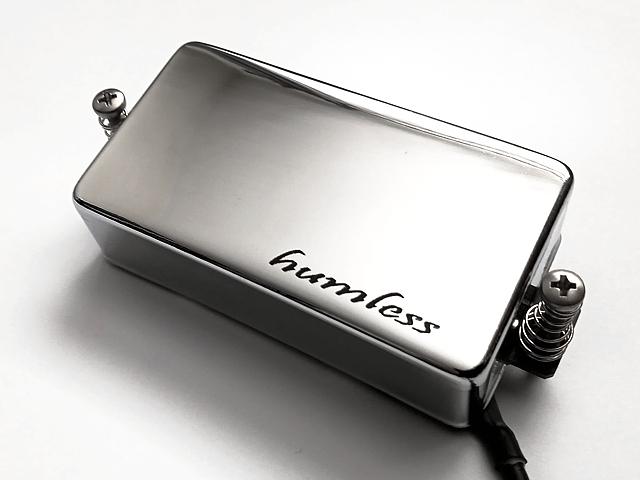

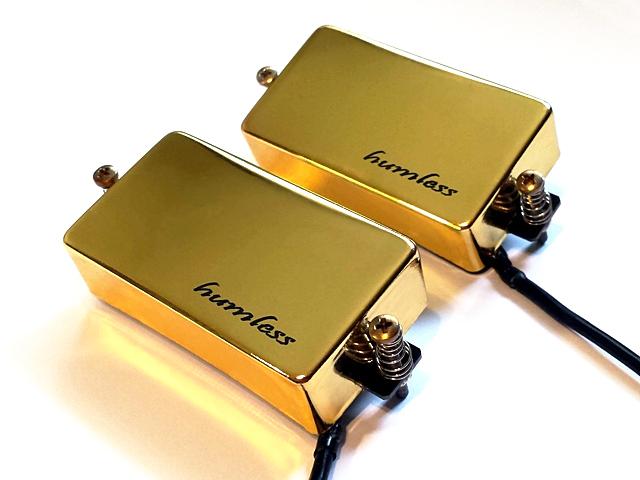

COVER M: chrome cover

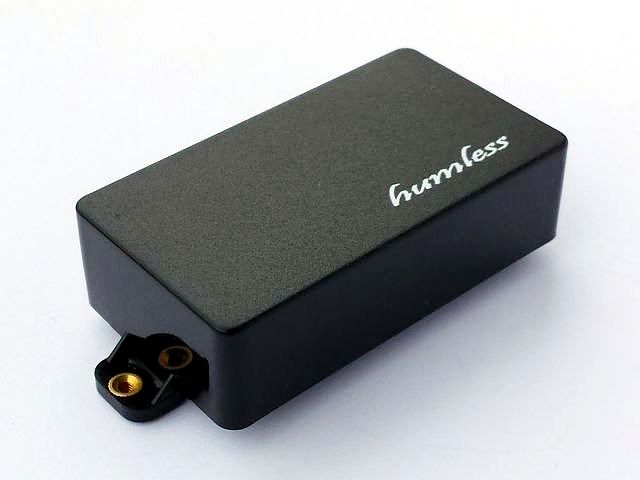

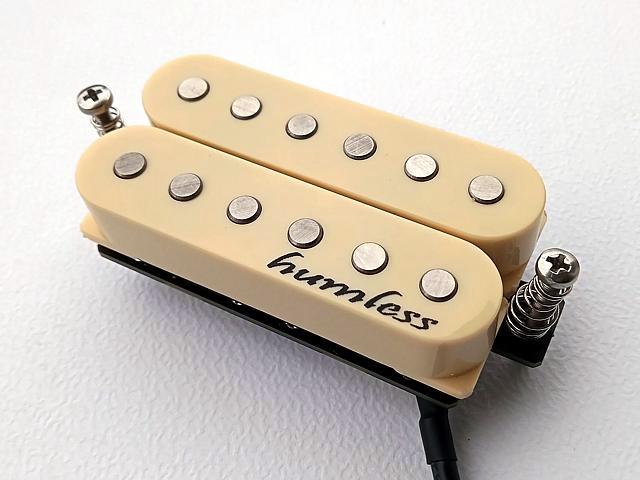

P
: plastic cover

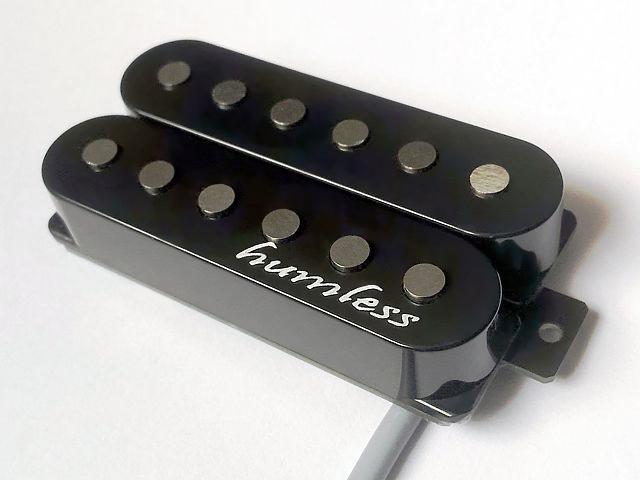

2P
: 2 plastic covers
Data may vary slightly. This is due to the process of design and features improving.

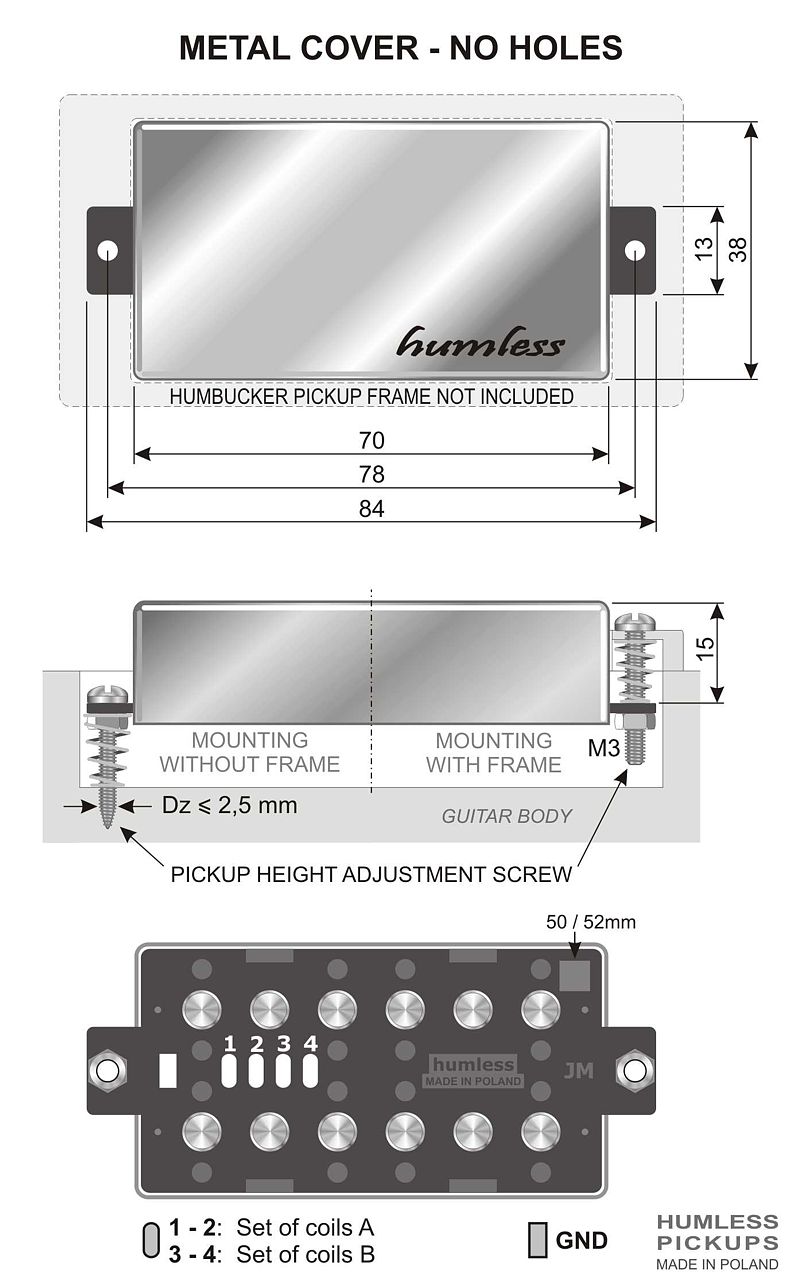

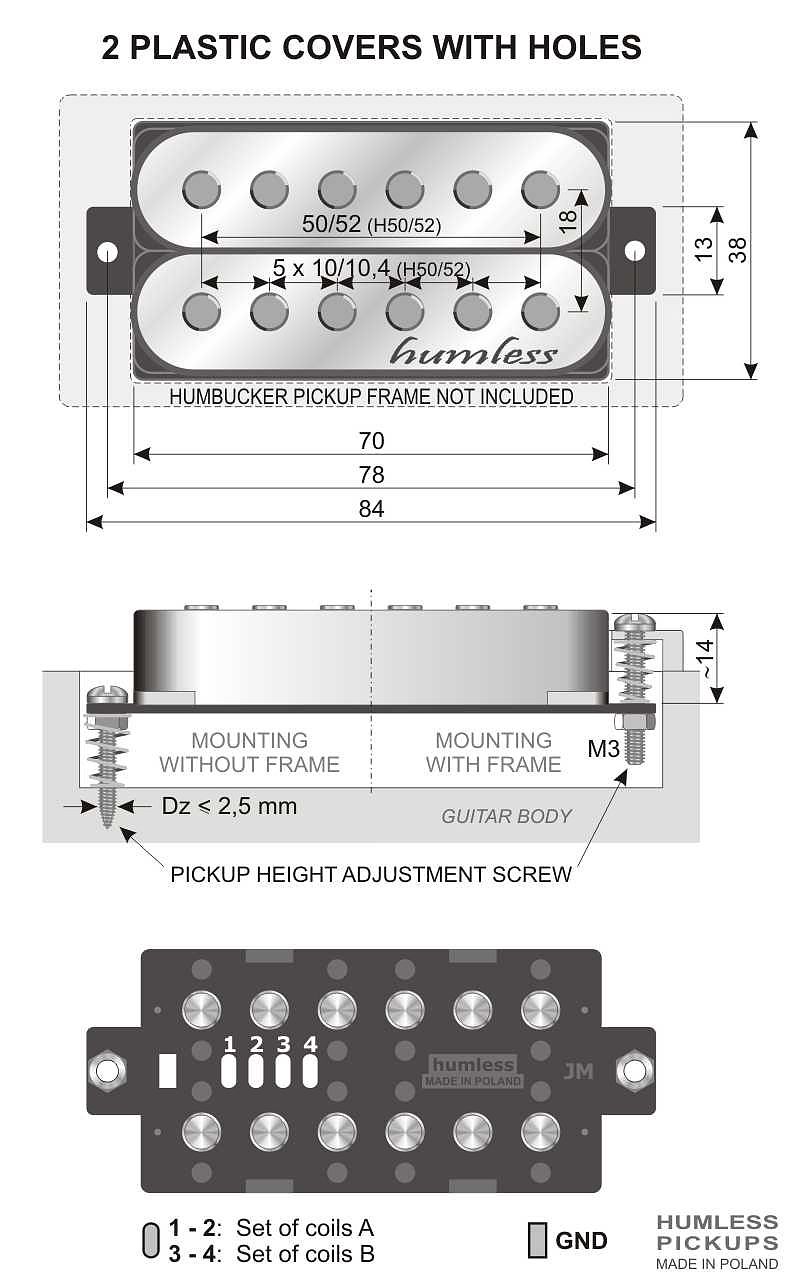

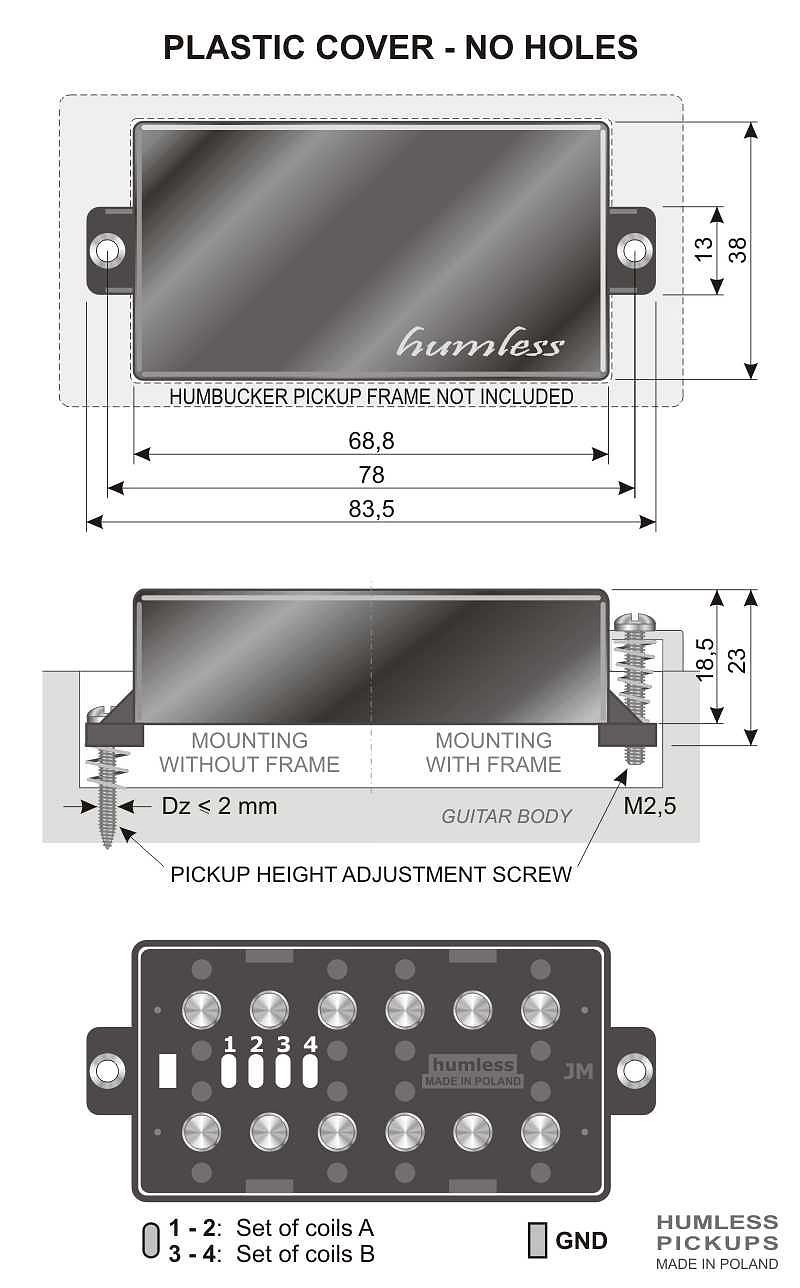

DIMENSIONS
METAL CHROME COVER



PLASTIC COVER



2 PLASTIC COVERS

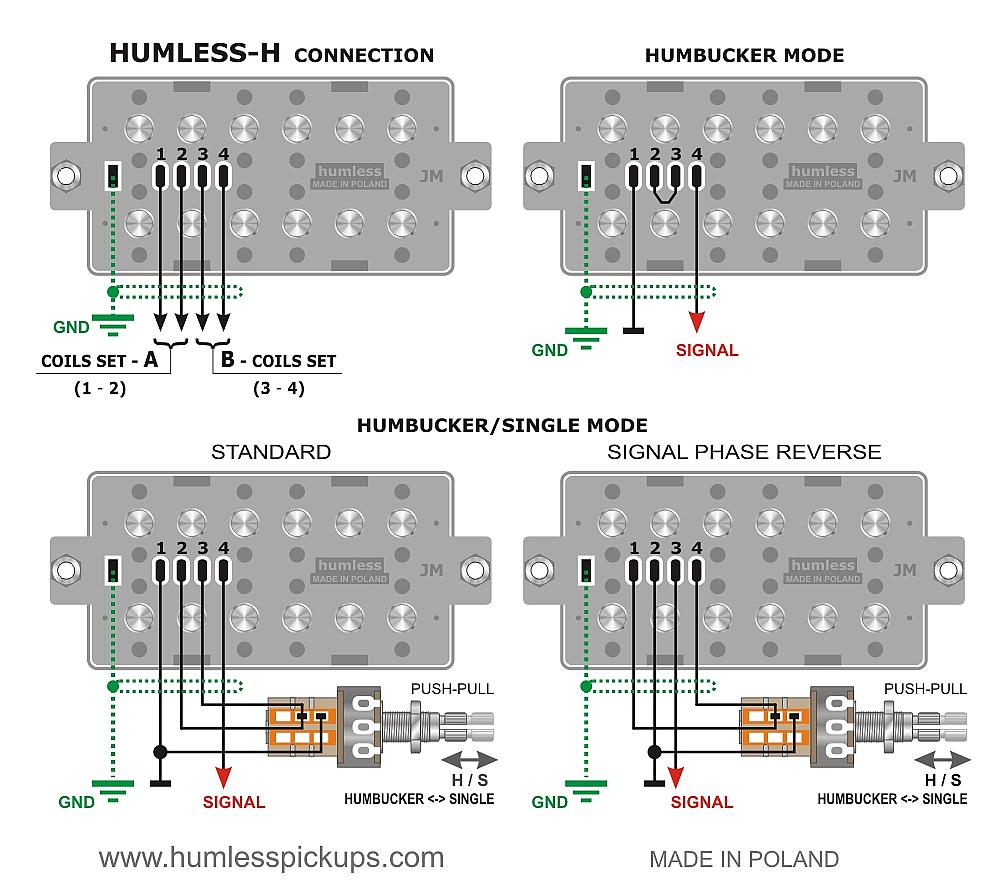

CONNECTIONS


The HUMLESS-H pickups are supplied with connected wires.
However, the user can change the wires according to their own needs and preferences.

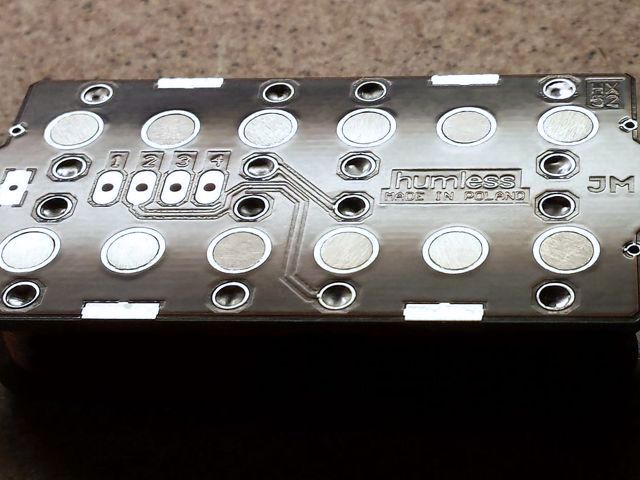

The wires should be soldered to the appropriate solder plate of the transducer base plate - GND, 1, 2, 3, 4.
CAUTION: Do not solder other tin-coated areas. Soldering in places other than solder packs may damage the pickup and in this case any complaints will not be taken into account.


   SOUND SAMPLES HUMLESS-H

   BRIDGE / CLEAN / humbucker
   BRIDGE / CLEAN / single
   NECK / CLEAN / humbucker
   NECK / CLEAN / single
   BRIDGE + NECK / CLEAN / humbucker
   BRIDGE + NECK / CLEAN / single
   BRIDGE / DISTORTION  / single
 Nagrania: Krzysztof Misiak
  BRIDGE / CLEAN / humbucker
  NECK / CLEAN  / humbucker
  BRIDGE / CLEAN / single
  NECK / CLEAN / single
  BRIDGE / DISTORTION / humbucker
  NECK / DISTORTION / humbucker
  BRIDGE / DISTORTION / single
  NECK / DISTORTION / single
  Krótkie porównanie brzmień / 1. BRIDGE - humbucker / 2. BRIDGE - single / 3. NECK - humbucker / 4. NECK - single /
---------------
UWAGA:
 humbucker (mode) - połączenie typu humbucker, single (mode) - cewki rozłączone

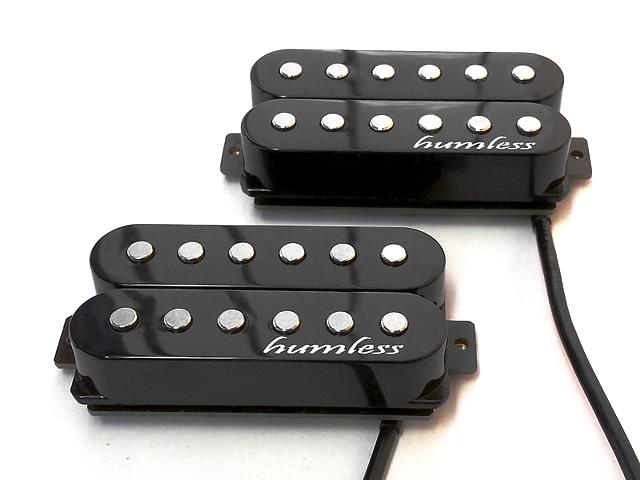

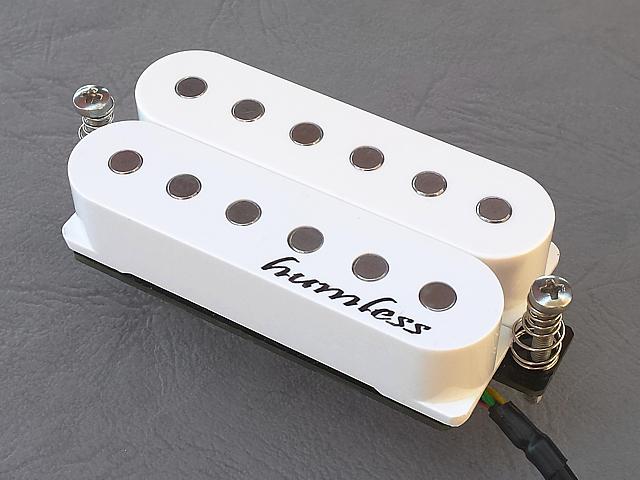

HUMLESS H-XP POWER!


HUMBUCKER WITH A STRONG SIGNAL

H-XP POWER humbuckers! are dedicated in particular to blues, rock, metal and other genres of music. They have the following features:
- a very large, easily distorted signal,
- even middle sound, rich overtones,
- the possibility of switching the coils with a push-pull switch to a series (humbucker standard) or parallel (sound towards Strato) connection - in both cases the pickups are maximally hum-free.

The pickups are made for 50 and 52mm string spacing
PCBs with hole metallization and solder mask were used to build the pickups.
The magnetic system of the transducers is built on the ALNICO 5 magnets. On request, it is possible to use other ALNICO magnets or NEODYMIUM magnets.


PRICE:  96 USD/pc.
Discount: 5% for 2 pcs., 7,5% for 3 pcs.

SPECIFICATION
MODEL H-XP52-M/P/2P H-XP50-M/P/2P
TYPE ELEKTROMAGNETIC PASSIVE
POSITION BRIDGE NECK
MAGNETIC SYSTEM 12 magnets ALNICO 5. Others upon agreement
RESISNATNCE 21 kOhm 18 kOhm
INDUCTANCE 6,1 H 5,9 H
RESISTANCE TO MICROPHONE FEEDBACK YES - waxing coils
MASS 95 - 125 g 95 - 125 g
ASSEMBLY CONDITIONS In typical sockets and holes

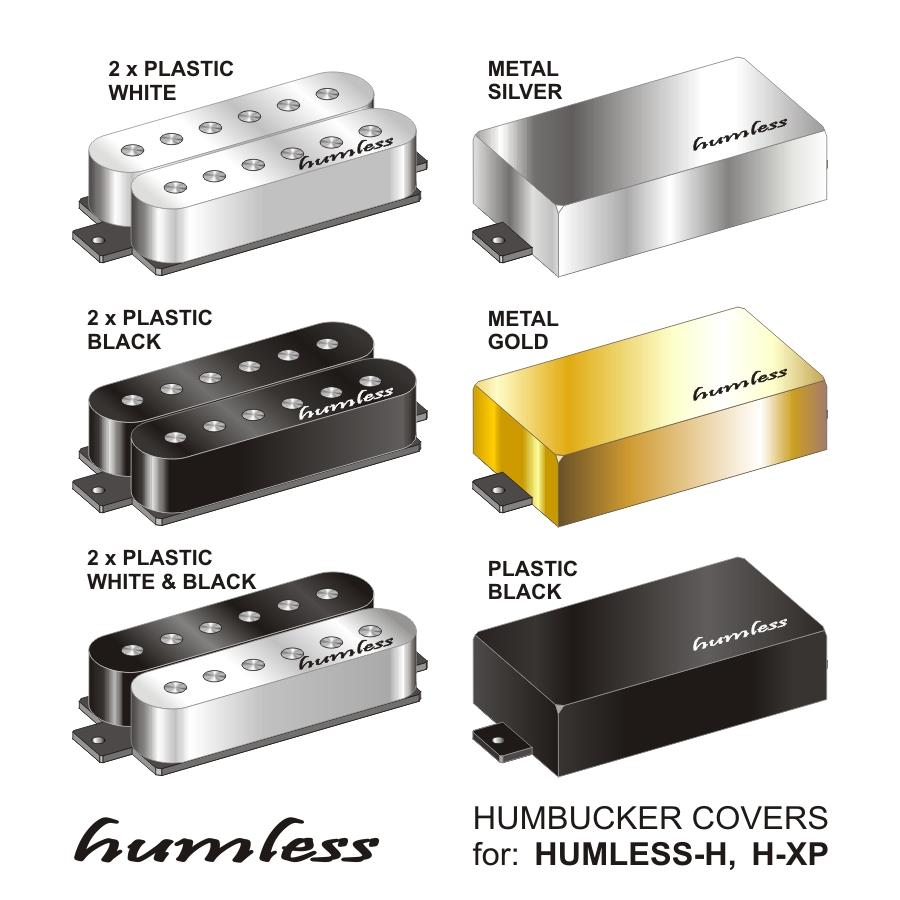

COVER M: metal chrome
P
: plastic
2P
: 2 plastic covers pokrywki
Data may vary slightly. This is due to the process of design and features improving.

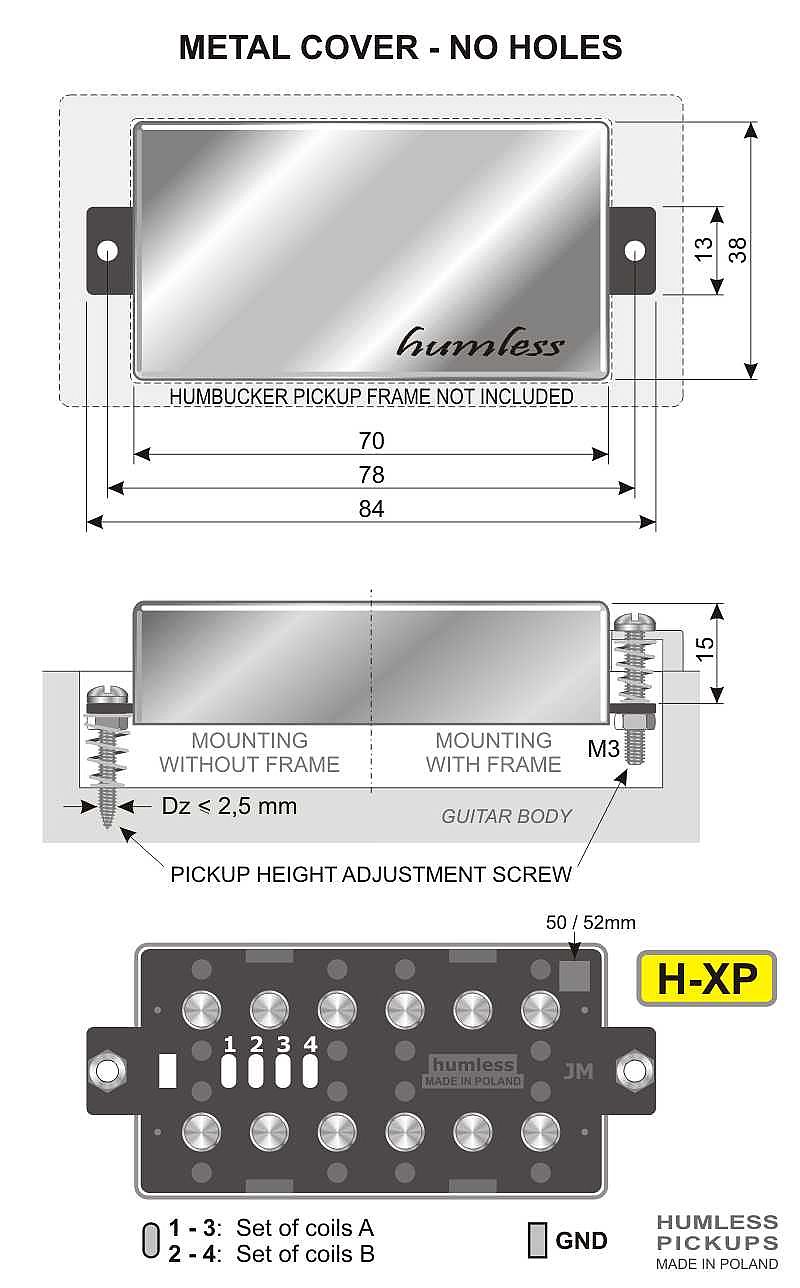

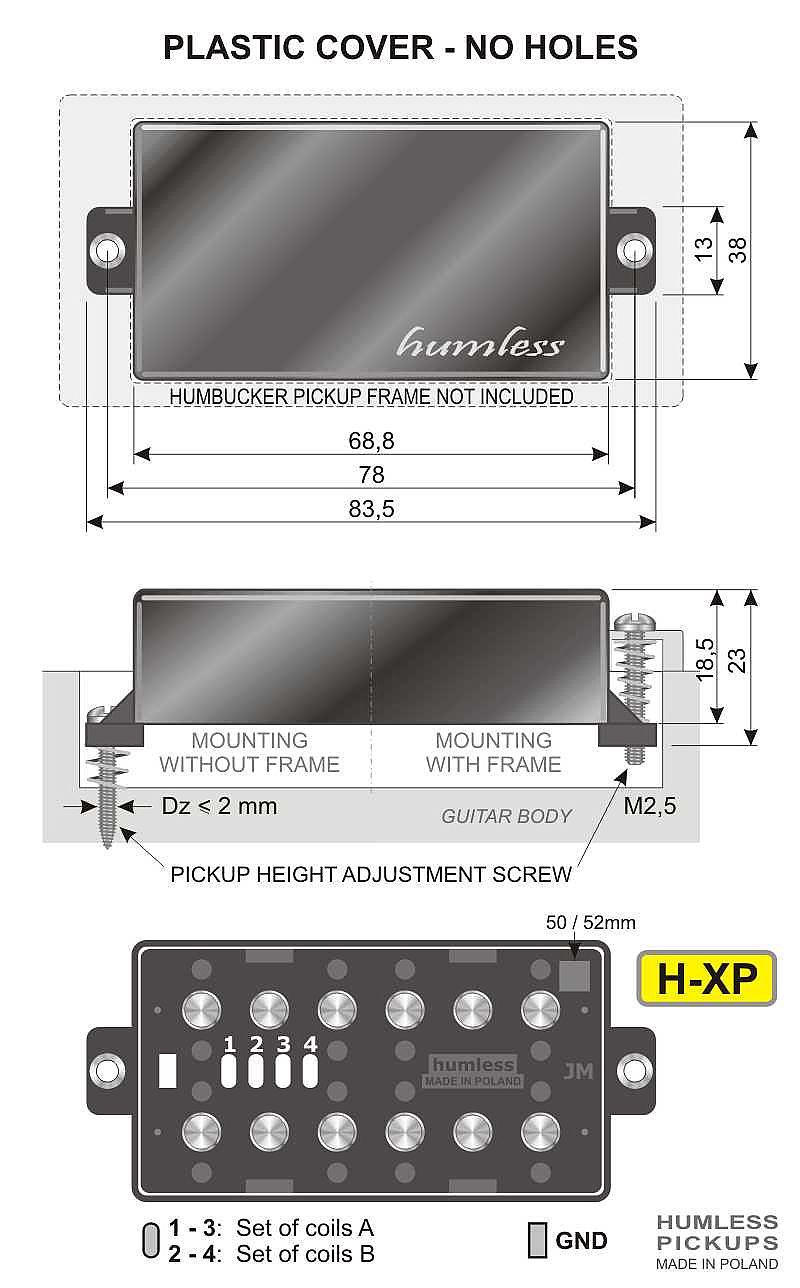

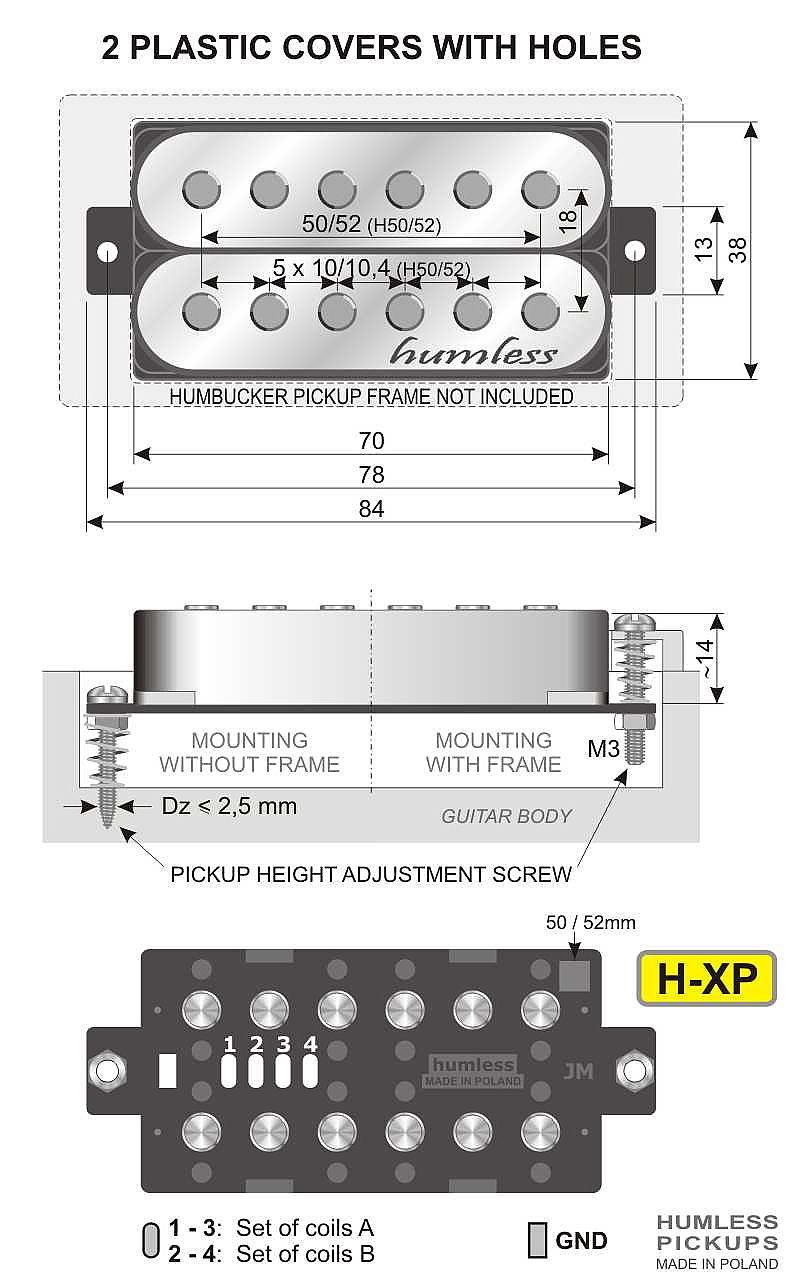

DIMENSIONS
METAL CHROME COVER



PLASTIC COVER



2 PLASTIC COVERS

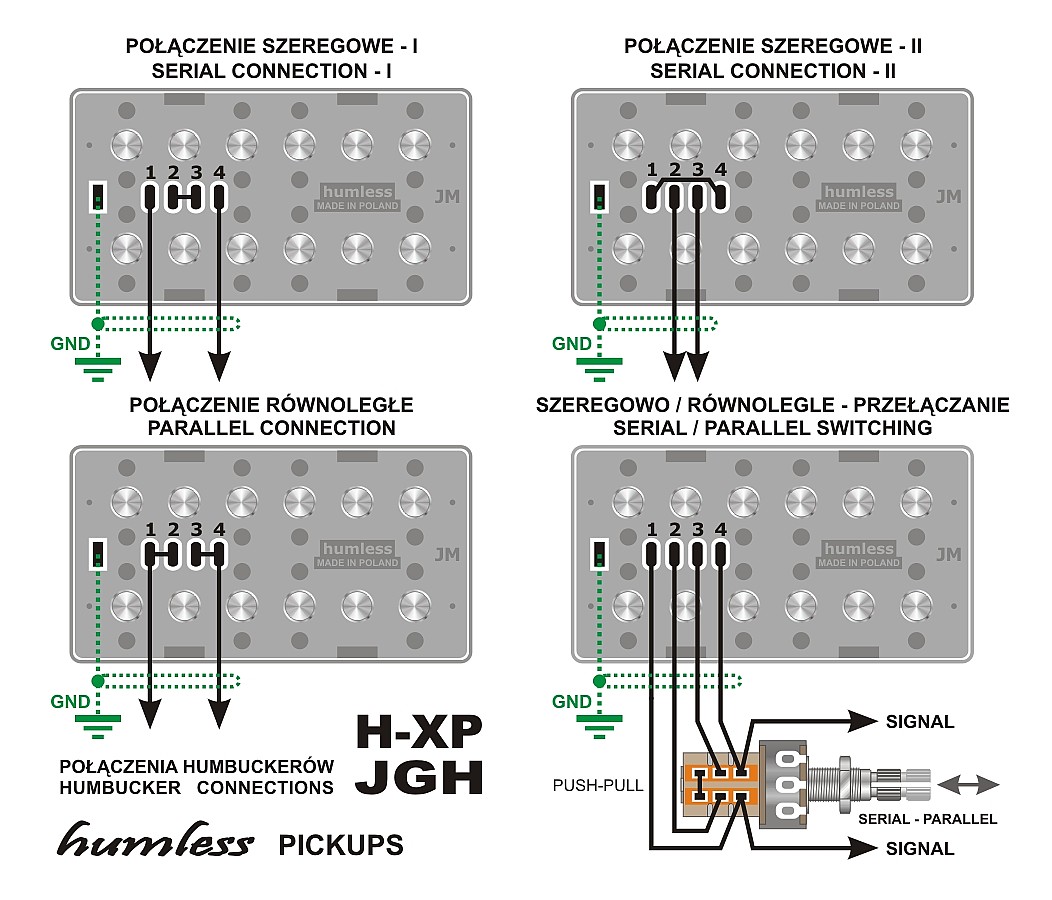

CONNECTIONS


The HUMLESS-H pickups are supplied with connected wires.
However, the user can change the wires according to their own needs and preferences.
The wires should be soldered to the appropriate solder plate of the transducer base plate - GND, 1, 2, 3, 4.
CAUTION: Do not solder other tin-coated areas. Soldering in places other than solder packs may damage the pickup and in this case any complaints will not be taken into account.

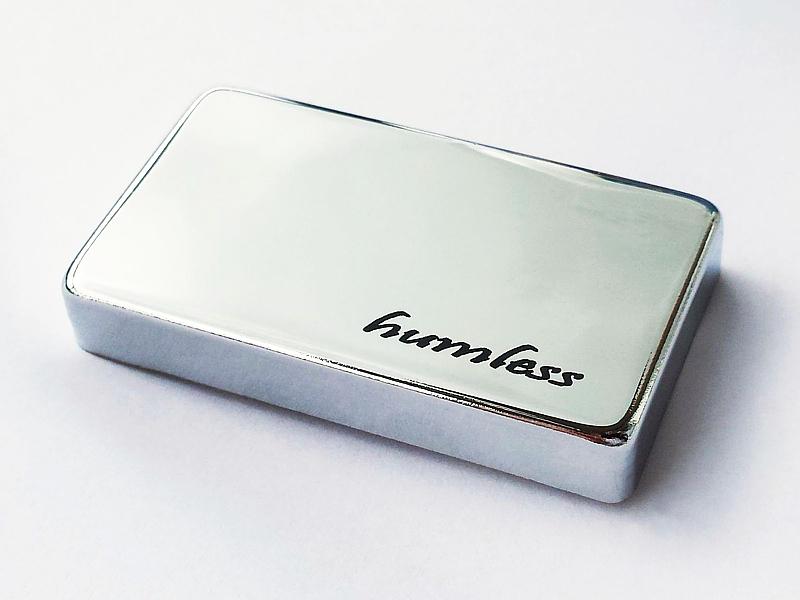

SLIM HUMBUCKER  HUMLESS JGH


FOR JAZZ GUITAR, HOLLOW BODY, ARCHTOP



HUMLESS JGH is a "floating pickup" slim humbucker dedicated to JAZZ GUITAR, HELLOW BODY and ARCHTOP guitars. Has the following features:
- high signal and maximum resistance to hum,
- even, deep, warm and clear sound,
- the ability to switch coils with a push-pull switch for serial (humbucker standard) or parallel (sound in the direction of Strato) - in both cases the pickup is maximally hum-free,
- strong, saturated ALNICO 5 magnets.

JGH humbucker is made for 50 mm spacing strings. It is possible to make for a spacing of 52 mm.
PCBs with hole metallization and solder mask were used to build the pickups.

The JGH humbucker in standard is made in a chrome-plated metal cover. It is attached to the end of the guitar fingerboard with a metal flat bar.

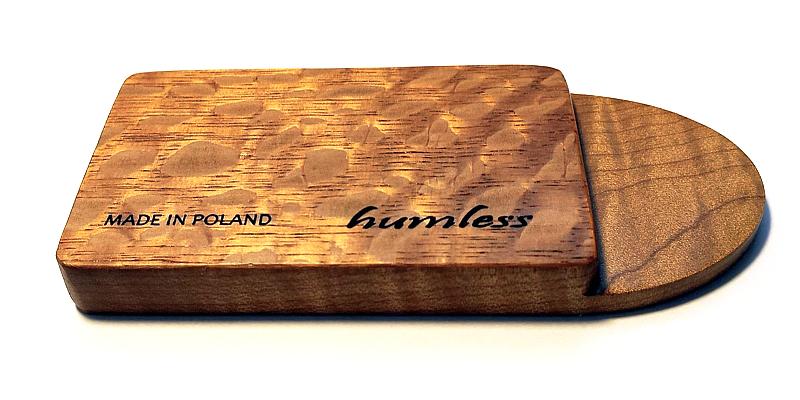

There is a possibility to make in exclusive designs - in a wooden casing made of unique species of wood. The pickup in this version is attached to the guitar pickguard.

PRICE:  105 USD/pc.
For a wooden case - an additional 22 USD

SPECIFICATION
MODEL H-JGH52-M/W
TYPE ELEKTROMAGNETIC PASSIVE
POSITION NECK
MAGNETIC SYSTEM 12 magnets ALNICO 5
RESISTANCE 15 kOhm - serial connection
3,7 kOhm - parallel connection
INDUCTANCE 4 H - serial connection
1 H - parallel connection
RESISTANCE TO MICROPHONE FEEDBACK YES - waxing coils
MASS 100 g
ASSEMBLY CONDITIONS "floating pickups"
COVER M: metal chrome
W
: wood
Data may vary slightly. This is due to the process of design and features improving.

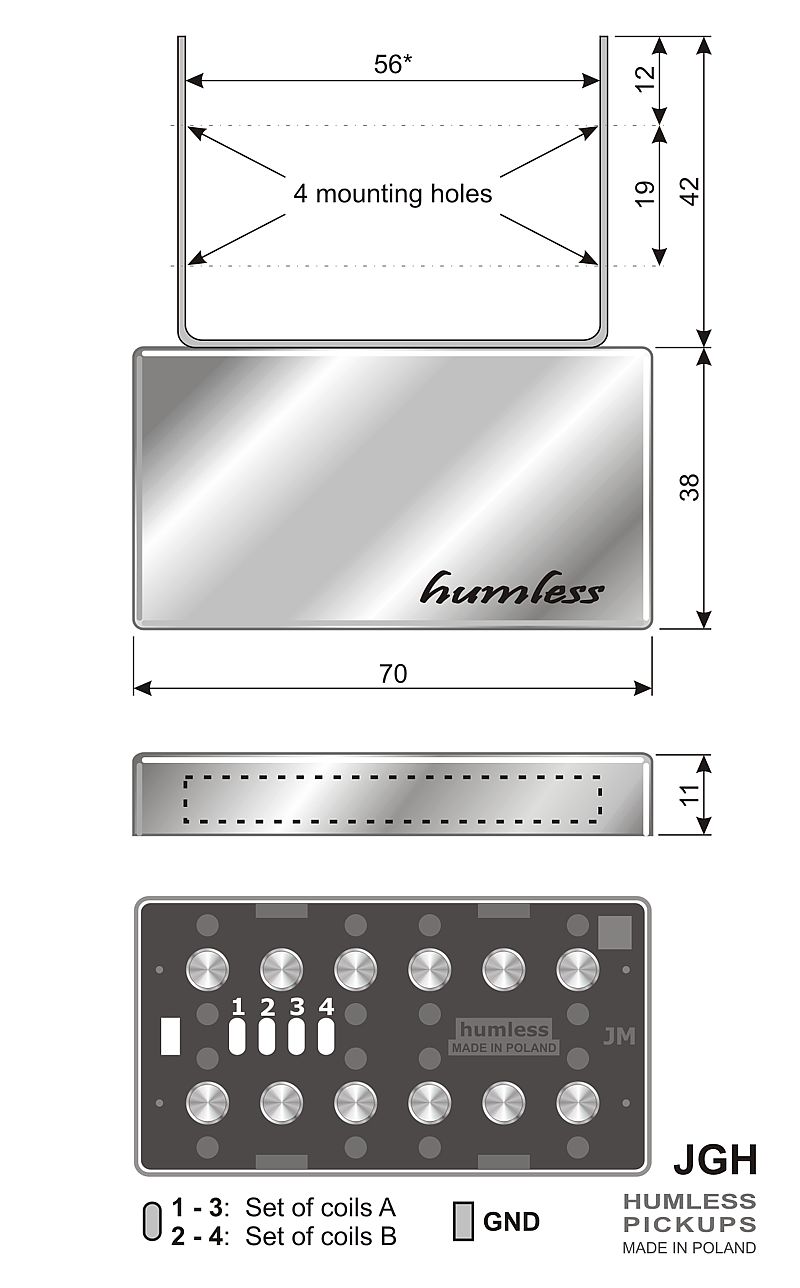

DIMENSIONS
METAL CHROME COVER




CONNECTIONS


The HUMLESS JGH pickups are supplied with connected wires.
However, the user can change the wires according to their own needs and preferences.
The wires should be soldered to the appropriate solder plate of the transducer base plate - GND, 1, 2, 3, 4.
CAUTION: Do not solder other tin-coated areas. Soldering in places other than solder packs may damage the pickup and in this case any complaints will not be taken into account.
