NOISELESS POLYPHONE PICKUPS  HUMLESS


HUMLESS HEX-S

INTEGRATED PICKUPS:  HEXAPHONIC + NOISELESS SINGLE COIL

PROBABLY THE ONLY DUAL-SYSTEM PICKUP IN THE WORLD !

ALL RIDHTS RESERVED


The HUMLESS HEX-S, dedicated to 6-string guitars, contains two types of pickups:
HEXAPHONIC PICKUP - set of six noiseless pickups giving 6 independent signals - a separate output signal for each string.
POSSIBLE APPLICATIONS
GUITAR MIDI
  Ability to control guitar MIDI systems (6 signal outputs) and obtain an unlimited number and combination of sounds, timbres and effects in the MIDI system.
PICKUP WITH MULTI-CHANNEL OUTPUT
  Possibility to connect the signal of each string (or any strings) to separate inputs of audio circuits (sound tracks, effects, amplifiers, speakers).
In this operation option, preamps for string signal outputs are recommended.
STANDARD PICKUP - hum-free, dynamic, full-range pickup with the sound of a classic Fender single coil Stratocaster pickup.

The dimensions of the pickups allow it to be mounted in standard humbucker sockets and holes.
The pickup is made for a string spacing of 52mm
PCB boards with metallization of holes and a solder mask were used to build the pickupss.
The magnetic system of the pickupss is built on ALNICO 5 magnets. Other ALNICO magnets can be used on request.


PRICE:   $ 160   PROMOTION !

SPECIFICATIONS
HUMLESS HEX-S HEX SINGLE-COIL
TYPE ELECTROMAGNETIC PASSIVE
DEDICATED POSITION BRIDGE
MAGNETIC SYSTEM 6 + 6 ALNICO 5 magnets
Others upon agreement
RESISTANCE 6 x 1 kOhm 9,3 kOhm
INDUCTANCE 6 x 0,1 H 2,5 H
RESISTANCE TO MICROPHONE FEEDBACK YES - waxing coils, tape
COVER 2P: 2 plastic covers (black, white, zebra)
Data may vary slightly. This is due to the process of design and features improving.

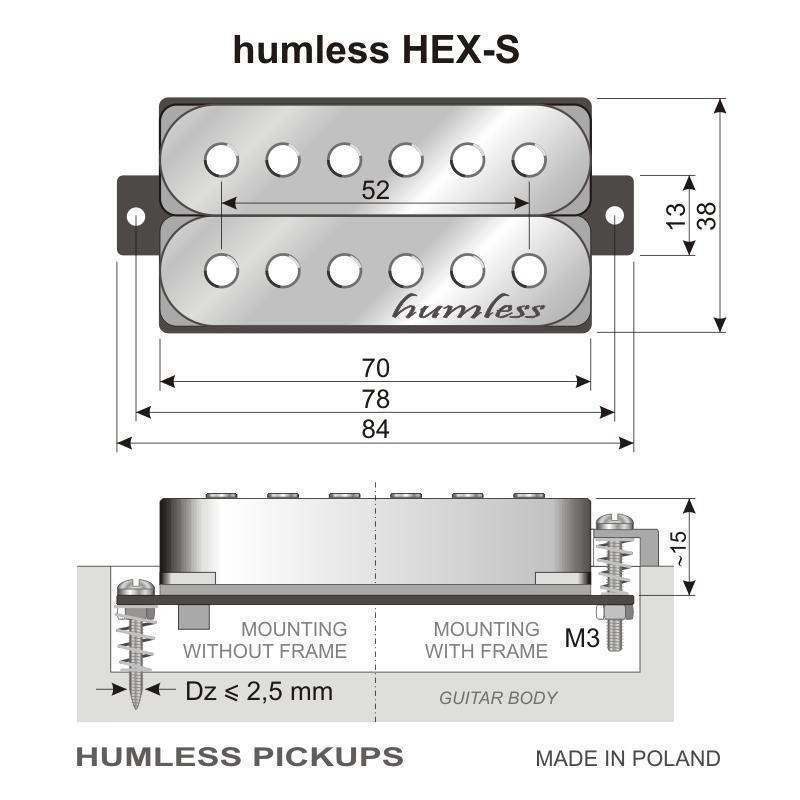

DIMENSIONS

2 PLASTIC COVERS

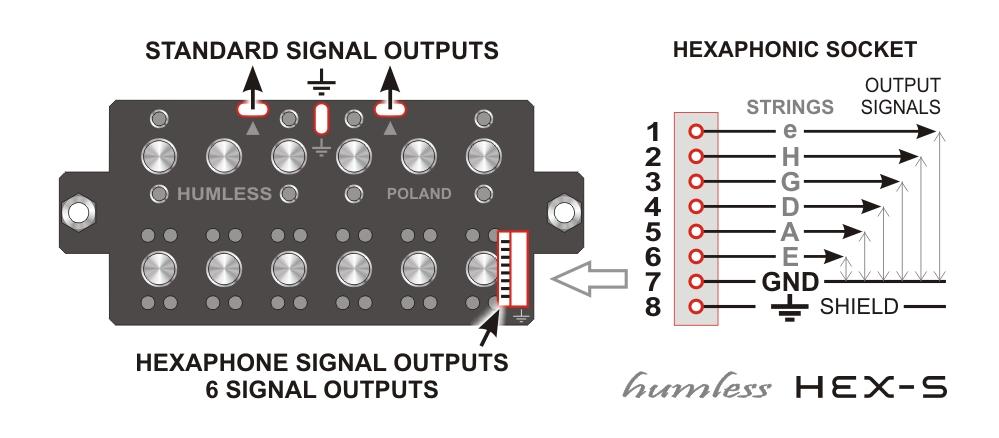

CONNECTIONS

The pickup is supplied with a cable with a plug for connection to the pickup.
On request, HEX cables can be soldered to the pickup board (permanent connection).

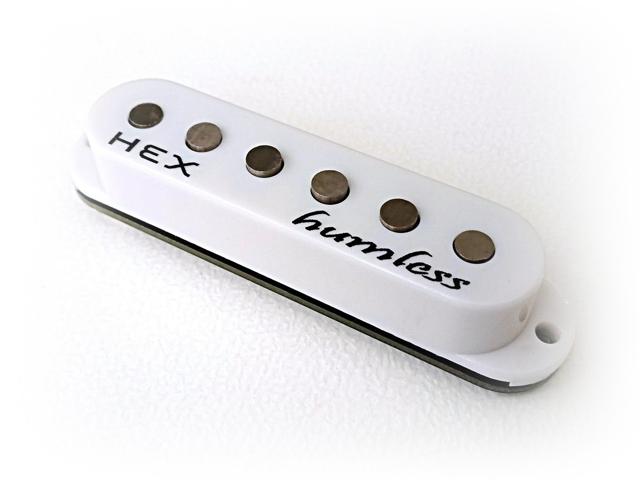

HUMLESS  HEX-52

HEXAPHONIC PICKUP


The HUMLESS HEX-52 pickup, dedicated to 6-string guitars, contains a set of six noisefree pickups - each string is operated by its assigned pickup.
The pickup has 6 independent signal outputs - each output contains the signal of one string.


POSSIBLE APPLICATIONS
GUITAR MIDI
Ability to control guitar MIDI systems (6 signal outputs) and obtain an unlimited number and combination of sounds, timbres and effects in the MIDI system.
PICKUP WITH MULTI-CHANNEL OUTPUT
Possibility to connect the signal of each string (or any strings) to separate inputs of audio circuits (sound tracks, effects, amplifiers, speakers).
In this operation option, preamps for string signal outputs are recommended.

The dimensions of the pickup allow it to be mounted in sockets and holes standard for Fender Stratocaster single coil pickups.
The pickup is made for a string spacing of 52mm
PCB boards with metallization of holes and a solder mask were used to build the pickupss.
The magnetic system of the pickups is built on ALNICO 5 magnets. Other ALNICO magnets can be used on request.

PRICE:   $ 120   PROMOTION !

SPECIFICATION
HEX HEX-52
TYPE ELECTROMAGNETIC PASSIVE
DEDICATED POSITION BRIDGE
MAGNETIC SYSTEM 6 ALNICO 5 magnets
Others upon agreement
RESISTANCE 6 x 1 kOhm
INDUCTANCE 6 x 0,1 H
RESISTANCE TO MICROPHONE FEEDBACK TAK - waxing coils, tape
COVER P: Plastic(black or white)
Data may vary slightly. This is due to the process of design and features improving.

DIMENSIONS

PLASTIC

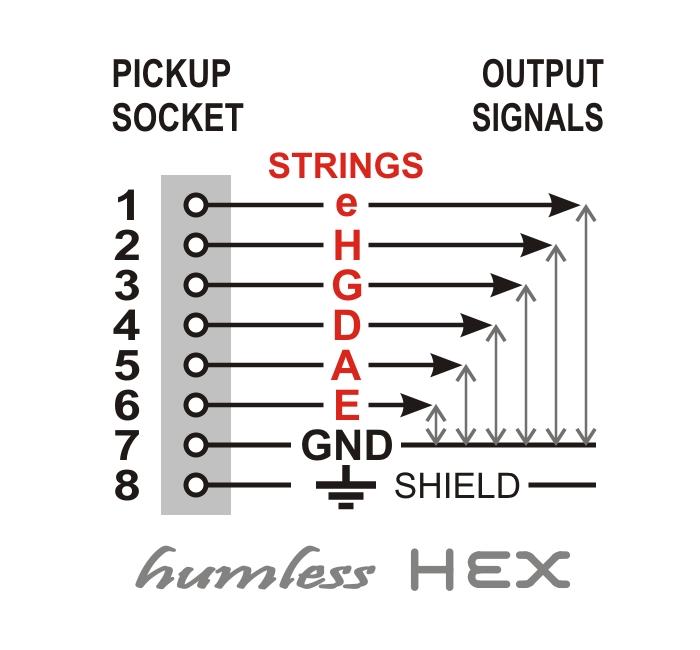

CONNECTIONS
The pickup is supplied with a cable with a plug for connection to the pickup.
On request, HEX cables can be soldered to the pickup board (permanent connection).
