NOISELESS TELECASTER PICKUPS  HUMLESS-T



The Telecaster pickups series HUMLESS-T are characterized by:
- maximum immunity and resistance to other electromagnetic interference,
- the sound corresponding to the classic sound ("glass") of Tele pickups,
- original, innovative design and durability used in building materials.

The HUMLESS-T pickups are made in two types of construction:
  H1 "CRISTAL": crystalline sound ("glass"), high dynamics, fast attack,
  H2 "PRECISION": alignment, precision articulation.


SPECIFICATIONS

CRISTAL H1 TB-H1
BRIDGE
TN-H1
NECK
TYPE ELECTROMAGNETIC PASSIVE
DEDICATED POSITION BRIDGE NECK
MAGNETIC SYSTEM 12 magnets ALNICO 5 (standard); others upon agreement
RESISTANCE 10,5 kOhm 9,1 kOhm
INDUCTANCE 2,6 H 2,2 H
RESISTANCE TO MICROPHONE FEEDBACK YES - waxing coils
MASS 55  g 55  g
ASSEMBLY CONDITIONS In typical sockets and holes
COVER COLOUR BLACK CHROME

PRECISION H2 TB-H2
BRIDGE
TN-H2
NECK
TYPE ELECTROMAGNETIC PASSIVE
DEDICATED POSITION BRIDGE NECK
MAGNETIC SYSTEM 12 magnets ALNICO 5 (standard); others upon agreement
RESISTANCE 19,3  kOhm 14,4 kOhm
INDUCTANCE 3,0 H 2,3 H
RESISTANCE TO MICROPHONE FEEDBACK YES - waxing coils
MASS 75 g 72 g
ASSEMBLY CONDITIONS In typical sockets and holes
COVER COLOUR BLACK CHROME
Data may vary slightly. This is due to the process of design and features improving.

When ordering please specify:

- Pickup model: (for example) TB
(Telecaster: bridge-TB, neck-TN)
- Type of construction: (for example) H1

Example of ordering:
HUMLESS TB/H1
Other embodiments be agreed upon.

DIMENSIONS

TELECASTER BRIDGE

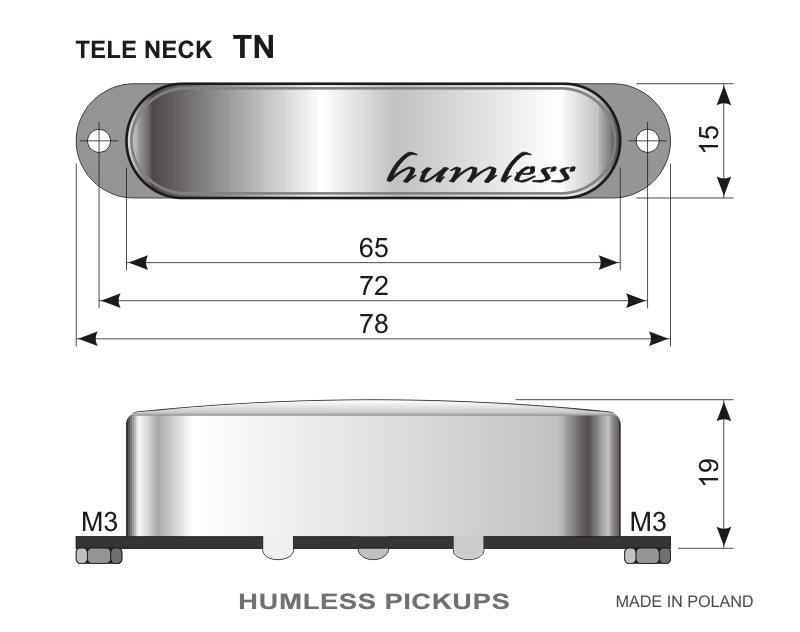

TELECASTER NECK





CONNECTIONS







The HUMLESS-T pickups are supplied with connected wires.
However, the user can change the wires according to their own needs and preferences.
The wires should be soldered to the solder plate of the transducer base plate - GND, SIGNAL.
CAUTION: Do not solder other tin-coated areas. Soldering in places other than solder packs may damage the pickup and in this case any complaints will not be taken into account.
NOTE
For H2 "PRECISION" pickups it is recommended to use potentiometers of 500 kOhm in the guitar.


   SOUND SAMPLESS HUMLESS-T  /TELECASTER PICKUP/
   soon
